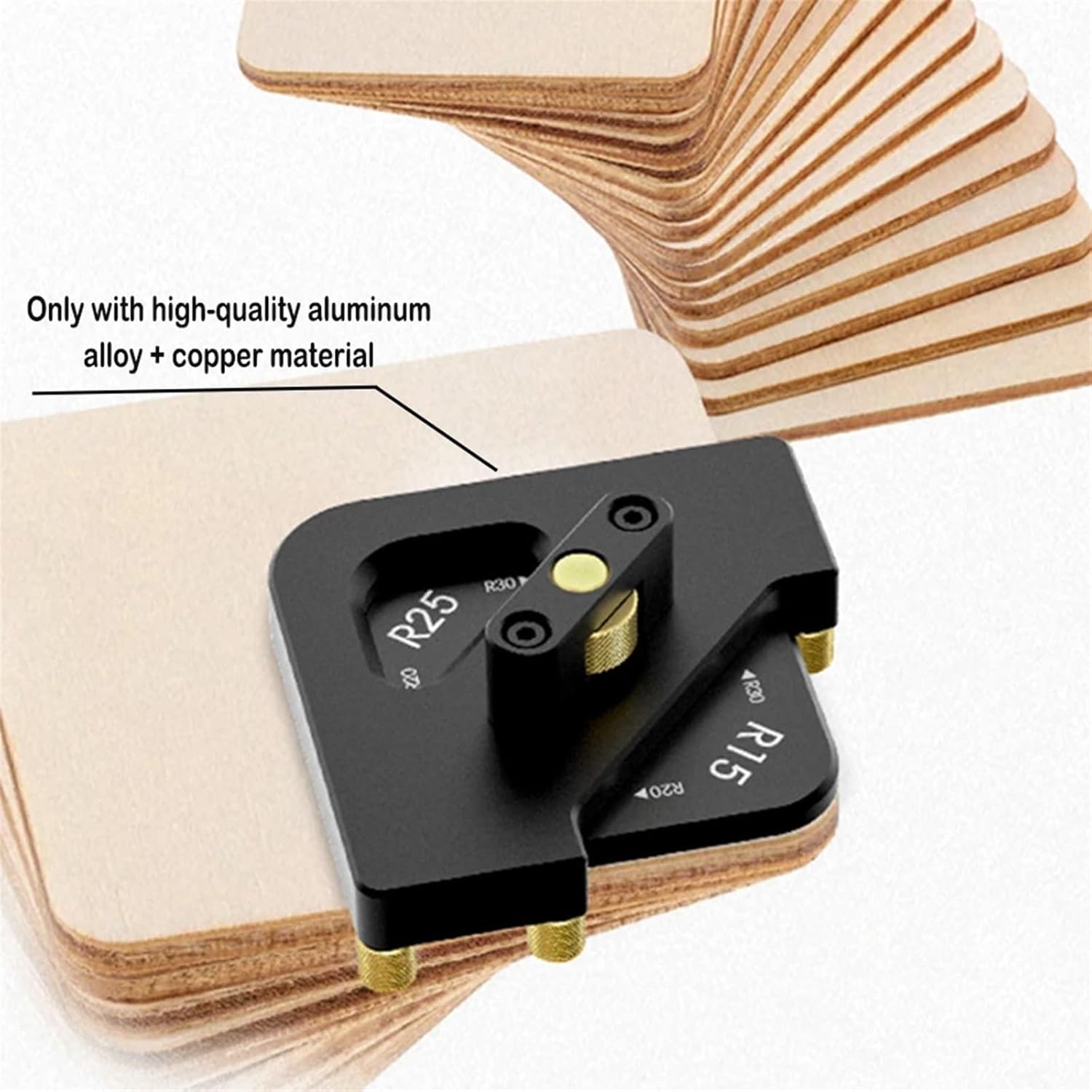

AVIMYA 8 in 1 Corner Radius Template Jig Fillet Arc Locator Jig Radius Quick-Jig for Trimming Machine Router Woodworking Tools (Color : E)

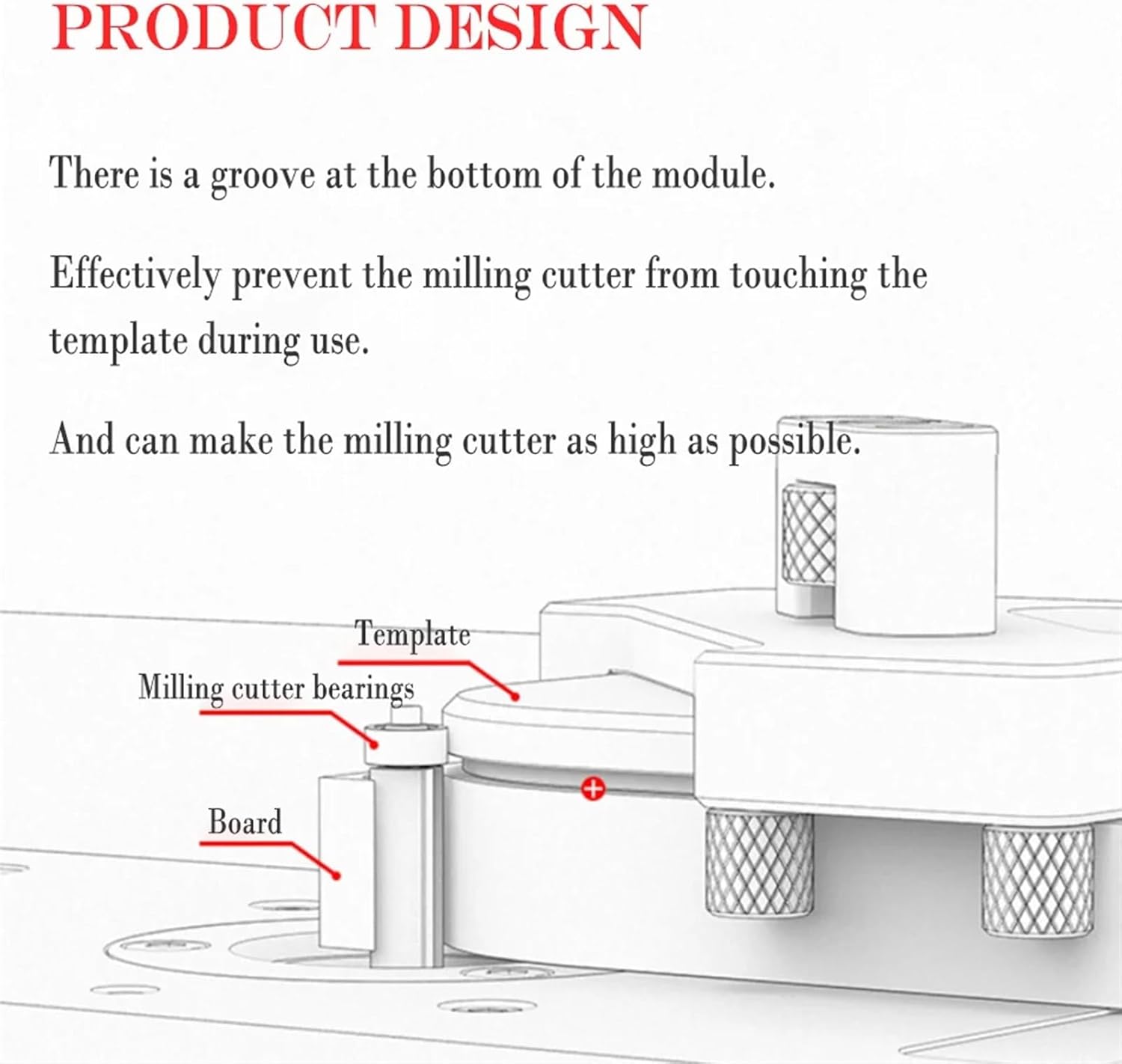

AccessoriesProduct description: R15 is an arc with a radius of 15, and the wood is quickly rounded. Application range: Suitable for all kinds of plates, but don't use it on too thin boards Instructions: 1. Loosen the copper screw in the middle, adjust it to the required corner, tighten the screw, and place it on the wooden board, hold the protrusion above the chamfering module, close to the wooden board, and keep your hands away from the cutter. 2. After sticking the board close to the cutter, first cut the tip of the board into a rough shape, and then walk slowly against the module. note: 1. It should be tried on workbenches such as flip-chip electric milling 2. A trimming knife with a bearing on the top should be used 3. The height of the trimming knife must be adjusted before use. When the machine is not turned on, observe whether the trimming knife bearing is on the same plane as the fillet module to ensure that the milling cutter does not scrape the trimming module, otherwise it may cause danger 4. The solid wood should go in from left to right along the grain of the wood, not upside-grain milling
