ET638 5in1 Multifunctional Network Cable Tester Multimeter, AC/DC Vole, Diode, Resistance, acitance Test Optical Power Meter Visual Fault Locator Network Length Measure, PoE Test, Crimping Test

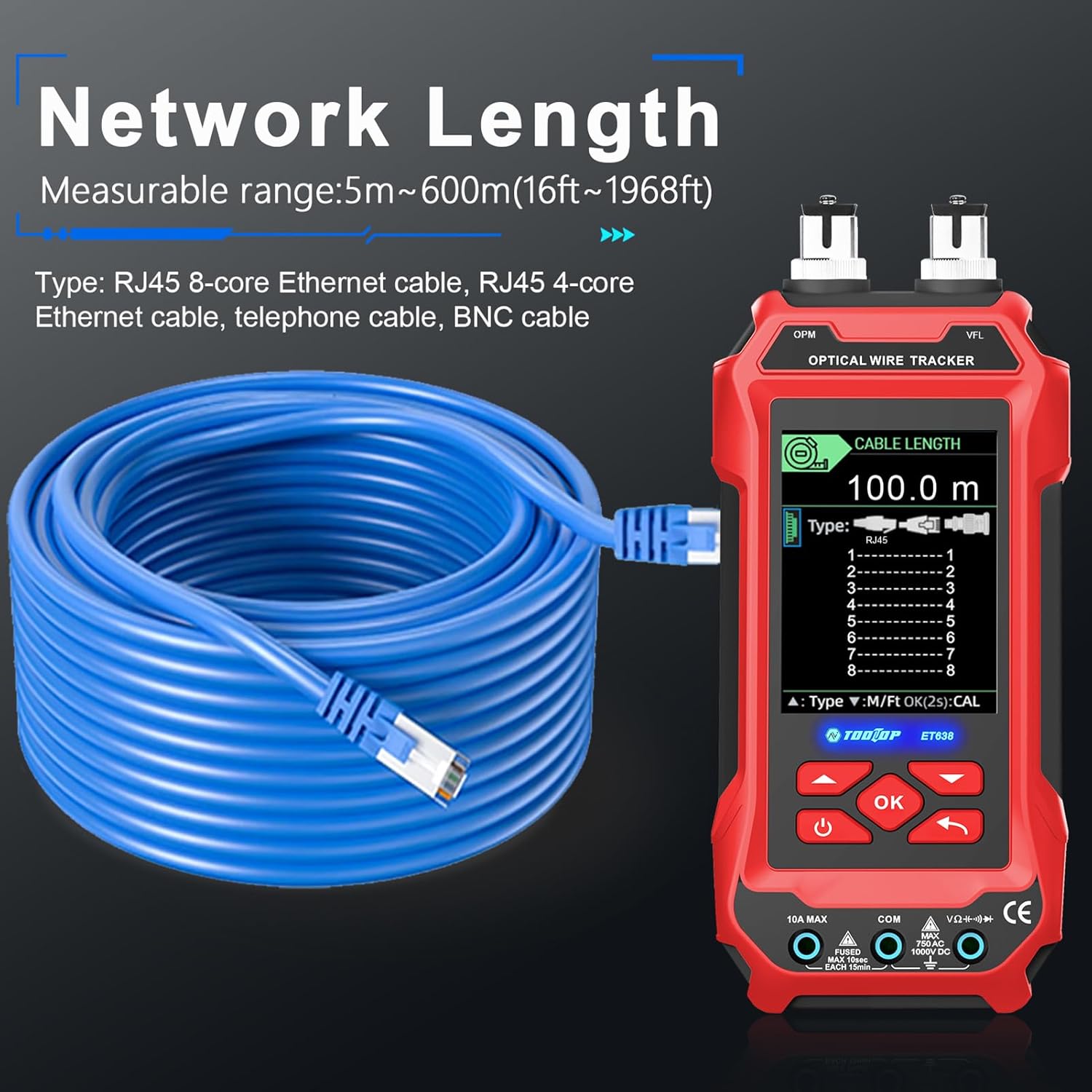

Specifications: Item: Multifunctional Network Cable Tester Color: Black, Red Product Material: ABS Length Measurement: Ethernet Cable (600M)/Telephone Cable (400M)/Coaxial Cable (400M) Wire Connection: Normal/Short Circuit/Broken/Crossed Optical Power: mW/uW/nW/-70.00~6.00dBm Red Function: 10mW (Approximately 10kM) Long on/Flashing (1Hz/2Hz)/off Switch Flash: 10M/100M/1000M POE Device Testing: Standard/non-standard POE, Vole Value/Polarity ID Pairing Function: Optional 1-15 Engineering Accounting: Store Records of 100/unit Price/Amount DC Vole: 600.00mV~1000V (± 0.5%+0.3) AC Vole: 600.00mV~750V (± 0.8%+0.5) DC Current: 600.00mA~10A (± 1%+0.4) AC Current: 600.00mA~10A (± 1%+0.5) Resistance: 600.00Q-60MQ (± 1%+0.6) acitor: 6.0000nF~60MF (± 2%+0.6) Frequency: 6.0000Hz~6 (± 1%+0.1) On/off Buzzing:<10Q buzzing Fuse Specification: CE5 * 20MM 10A/1000V Sreen: 3.2-inch 240 * 320 Dot Matrix Color Screen Battery: Host: 1500mAh; Receiver: 800mah Size: Host: 19.5*8.7*3.5cm/7.68*3.43*1.38inch Package Size: 26*16.8*7.5cm Package Weight: 879g Package List: 1* Line Finder Host 1* Receiver 1* USB Type-C Cable 1* RJ45 Cable 1* Crocodile Clip 1* Probe 7* Adapter 1* Instruction Manual 1* Storage Bag

• All-In-One Testing Solution: The ET638 combines a network cable tester with a multimeter, offering a comprehensive set of features including AC/DC vole, diode, resistance, acitance, AC/DC current, cable mapping, network length measurement, PoE testing, crimping test, and NCV (Non-Contact Vole) test.
• High-Precision Optical Power Meter: Equipped with a high-precision optical power meter, the device can measure optical power levels from 6dBm to -70dBm. The advanced optical power meter ensures accurate and reliable measurements, helping you to maintain and troubleshoot fiber optic networks effectively.

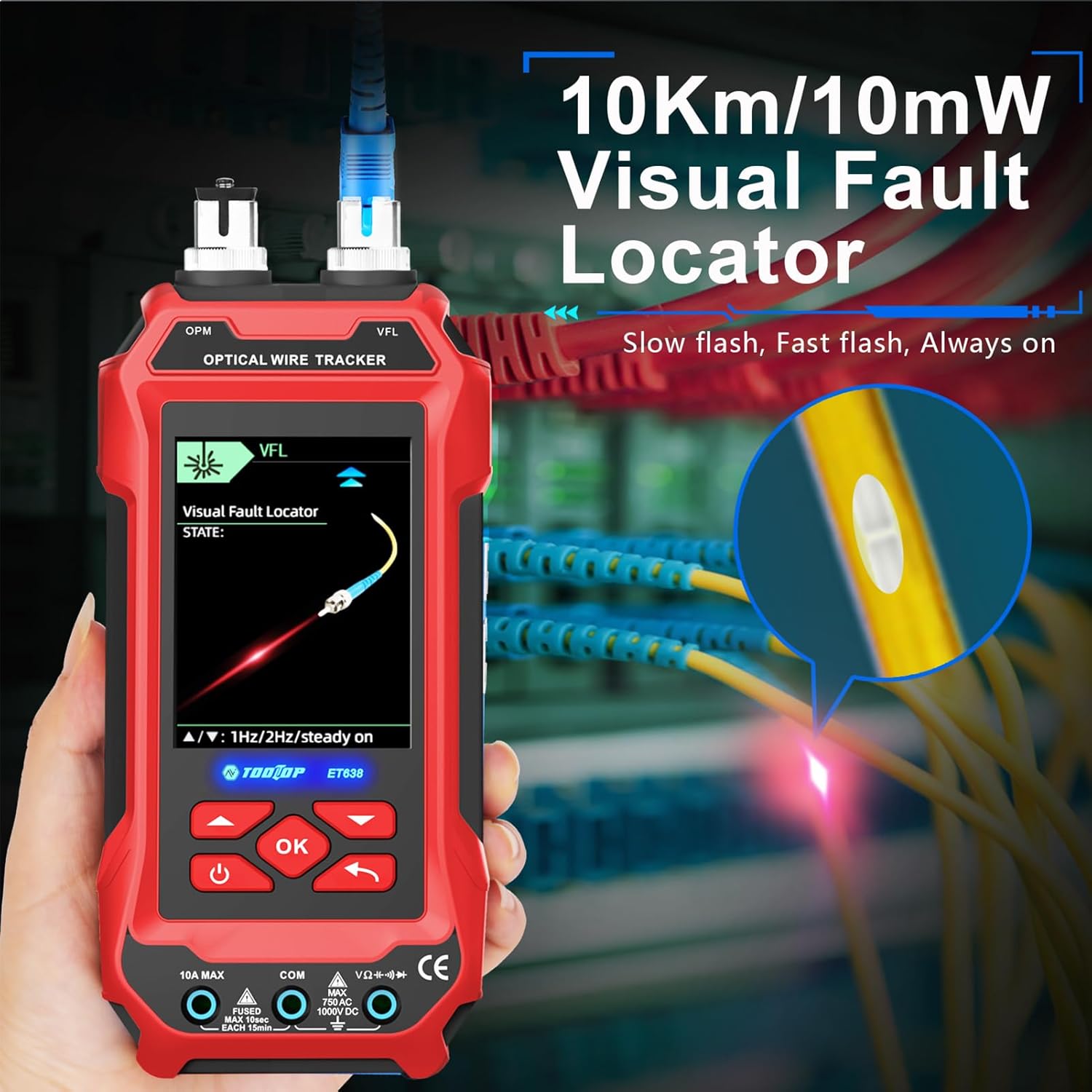

• Visual Fault Locator: The red visual fault locator can detect faults in fiber optic cables up to a distance of 10 kilometers, allowing you to quickly identify and locate issues such as breaks or bends. Save time and effort by pinpointing faults in your fiber optic cables with precision. The visual fault locator is an indispensable for maintaining and ing fiber optic networks, ensuring minimal downtime.

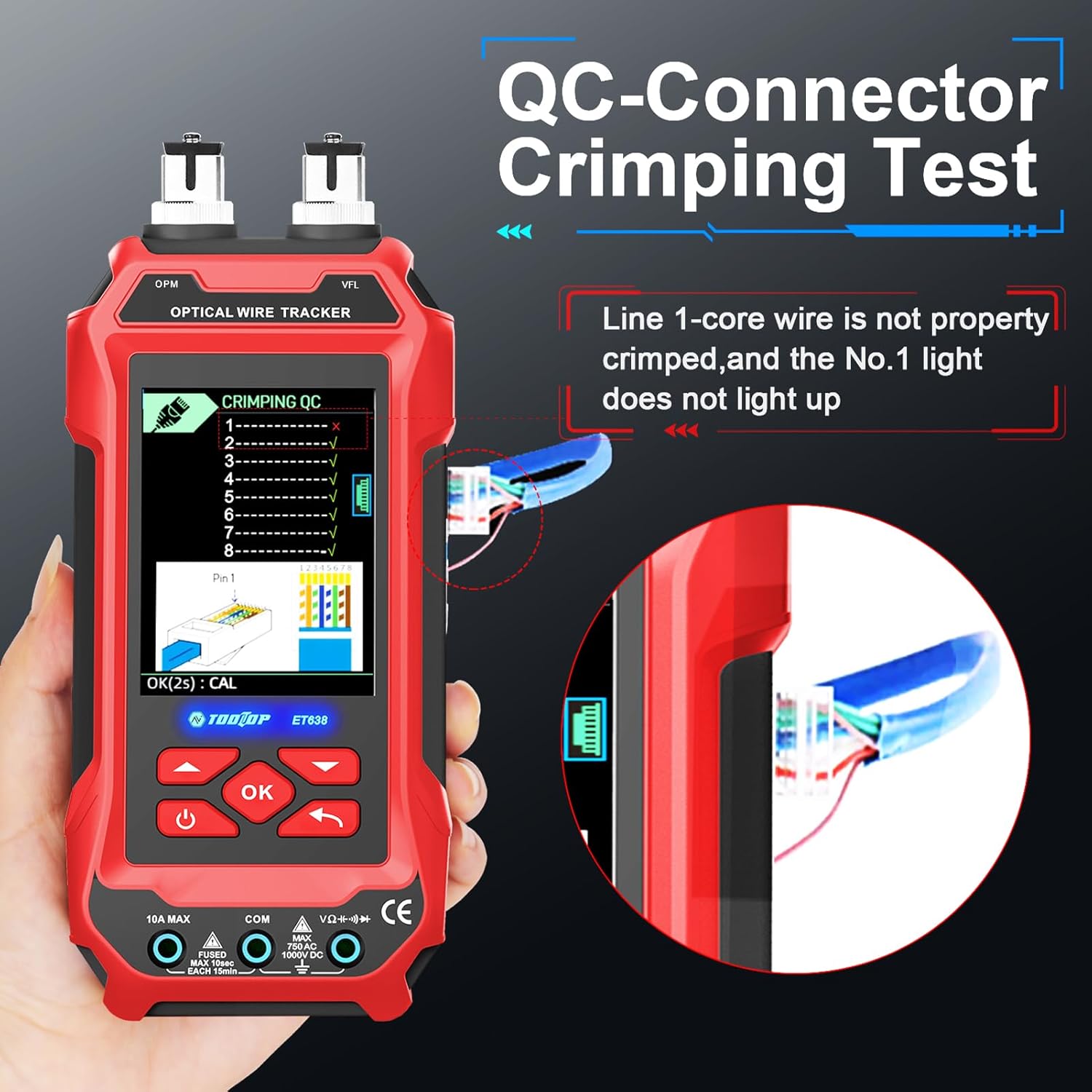

• Advanced Cable Analysis: The device provides powerful cable analysis features, including detection of open circuits, short circuits, cross connections, and crystal head crimping test. Ensure the integrity and performance of your network cabling with the advanced analysis features. This comprehensive testing helps you to identify and resolve issues before they become critical, enhancing the reliability of your network.
• User-Friendly Design: The ET636 features a 3.2-inch HD screen and ports four languages (Chin, English, German, and Spanish). The intuitive interface and multilingual port make this device accessible to users around the world. The high-definition screen ensures clear and readable s, even in challenging environments.
