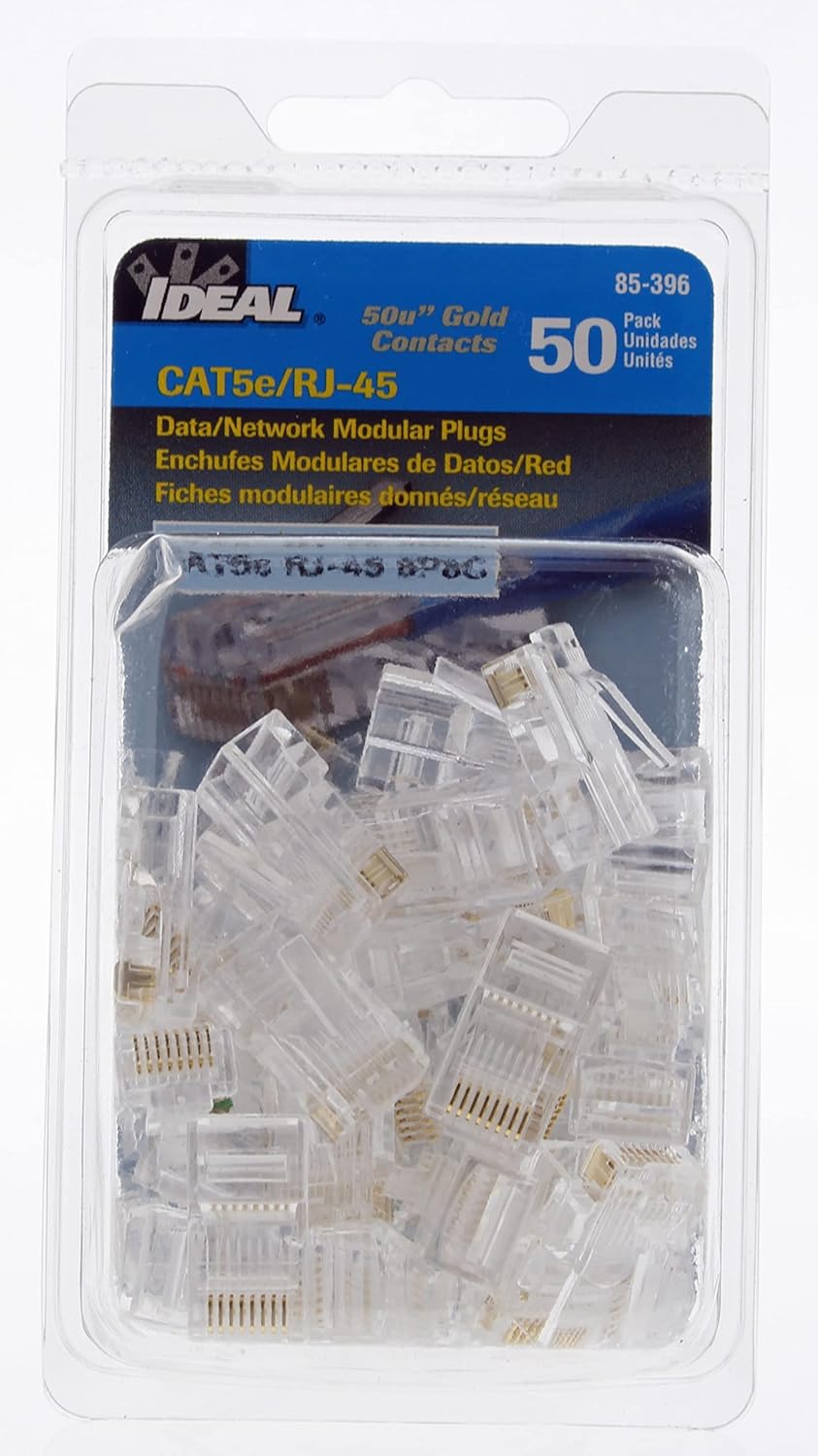

Ideal Electrical 85-396 8P8C Modular Plugs Connector, RJ-45 Connector for CAT5e, Twisted Pair 100 MHz Cables, 50 Connectors
4.6 (146 items)
Limited Time SaleUS$14.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217169698 | Release Date | 2026/04/19 | List Price | US$9.99 | Model Number | 217169698 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
CAT5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL FT-45 and Telemaster series of modular plug crimp tools. Plugs are designed and manufactured to support all 100Ω cable wiring schemes including the widely used TIA-568A and TIA-568B configurations. IDEAL modular plugs are manufactured to strict industry standards and tolerances that utilize traditional preparation and termination methods. These proven and preferred methods allow for improved compatibility among manufacturers and devices around the world without the need for special tooling or preparation methods.
- DATA CONNECTOR: Supports 1 gigabit Ethernet for CAT5e cable installations in home offices and commercial installations. Primary and secondary strain relief supports to retain cable jacket and minimize conductor movement once crimped
- CONSTRUCTION: This modular plug features a single-piece design that supports different wiring schemes, including TIA-568A and TIA-568B configurations. Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports
- EXCELLENT DESIGN: Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors. Max conductor diameter of 0.042 in. - 1.07mm. Max recommended cable outer jacket diameter 0.270 in. - 6.8mm
- COMPATIBILITY: Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports. UL Listed.
- SPECIFICATIONS: The package includes [50] CAT5e plug connectors that ensure a permanent connection when crimped with a compatible industry standard modular plug crimp tool. 8-position, 8-contact RJ-45 modular plug for Cat 5e, 100Ω balanced twisted pair 100 MHz cables. Designed to work seamlessly with IDEAL Telemaster and FT-45 crimping tools, also compatible with industry standard modular plug crimping tools meeting specifications
| UPC | 115971123839 807032934866 132017734170 809188490227 783250853960 631058278303 168141327308 807320278009 809387585977 803982918468 |
|---|---|
| Color | Clear |
| Gauge | 24.0 |
| Model | 85-396 |
| Frequency | 100 MHz |
| Brand Name | Ideal Industries |
| Cable Type | Ethernet |
| Item Shape | Round |
| Model Name | RA6922 |
| Unit Count | 50.0 Count |
| Item Length | 6 Inches |
| Item Weight | 0.02 Pounds |
| Manufacturer | IDEAL INDUSTRIES |
| Connector Type | Hdmi to Dvi |
| Item Type Name | Ideal Industries 85-396 Telcom - Network Connector - RJ-45 (M), Clear |
| Number of Pins | 8 |
| Maximum Voltage | 5 Volts |
| Number of Items | 50 |
| Connector Gender | Male-to-Male |
| Specification Met | FCC, UL |
| Compatible Devices | Personal Computer |
| Data Transfer Rate | 1000000000 Bits Per Second |
| Included Components | IDEAL network connector(50) |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Warranty Description | no warranty |
| Compatible Phone Models | Potentially compatible with smartphones with USB-C to Ethernet adapters, specific models unknown |
| Ethernet Cable Category | Cat 5e |
| Global Trade Identification Number | 00783250853960 |
| Other Special Features of the Product | High Speed |
