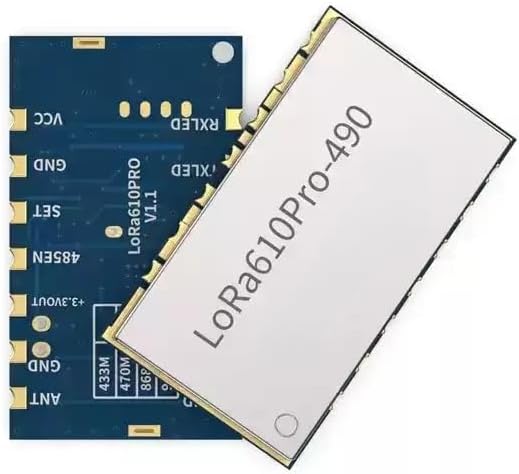

Lora610pro 100mW Mesh Network Lora Long Range Wireless Transceiver Data RF Module x 2 PCS

Package: Lora610pro x 2 PCSFeatures of LoRa Module LoRa610Pro:Dual antenna designAES128 data encryption methodNo blind zone without distance limitationSingle module open transmission distance of 5Km @ low rateFrequency band: 433/470/868/915 MHz for optionUp to 40 communication channels in the same frequency bandDiversified serial port parametersOperating voltage range: 3.3 ~ 6.5 VOperating temperature range: -40 ~ +85°CLBT (Listen Before Talk) function optionalNode/route/node+route optional in MESH modeHop level in MESH modeCRC optionalBuilt-in hardware reset protection circuitLoRa modulationTTL interfaceSensitivity up to -139 dBmMaximum output power: 100 mW (+20 dBm)Applications of LoRa Module LoRa610ProRemote controlRemote meter readingIndustrial data collectionHome automation telemetryWireless data communicationAccess control system

• The LoRa Pro module is a new series of upgraded networking wireless communication modules from Wireless.
• It is based on SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity.
• The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference.
• In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way.
• Users can switch between different working modes through the PC software configuration module.
• In MESH mode, the routing module has automatic routing.Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination.
• At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure.
