R8 FMB27 7/16-20UNF Shank Face End Mill Arbor and 3.15"/80mm Cutting Diameter 6-Flute 400R-80-27-6T CNC Face End Milling Shell Cutter with 6Pcs APMT1604 Carbide Inserts and T15 Wrench

​​Specification:Used for plate cutting, Hardenless insert used for steel meterial. Body made of steel, durableCarbide InsertMaterial: cemented carbideModel: APMT1604 85°Nose Angle Parallelogram11°Relief AngleFace Mill ArborModel: R8-FMB27 Bore Diameter: 1.06In/27mmDraw Bar Threads: 7/16-20Milling CutterModel: 400R-80-27-6T Flutes: 6-FluteCutting Diameter: 3.15in/80mmFeatures:90° indexable milling cutter, matching with standard APMT1604 insert Made of alloy steel with high hardness and strength to ensure long service lifeHigh vibration-absorbing performance, improve the surface finish of the workpieceSet including R8 face mill arbor with 27mm bore for holding milling cutter Set including 10pcs APMT1604 inserts, great for shoulder milling, face milling and slotting, can fit a variety of materialsPackage included: 1 x R8 FMB22 Arbor1 x BAP400R 80-27-6T1 x T15 Wrench10 x APMT1604 Carbide Inserts as pictured

• [Product Includes]: 1*R8 FMB22 Arbor, 1*400R-80-27-6T Cutter, 1*T15 Wrench, 10* APMT1604 Carbide Inserts as pictured.

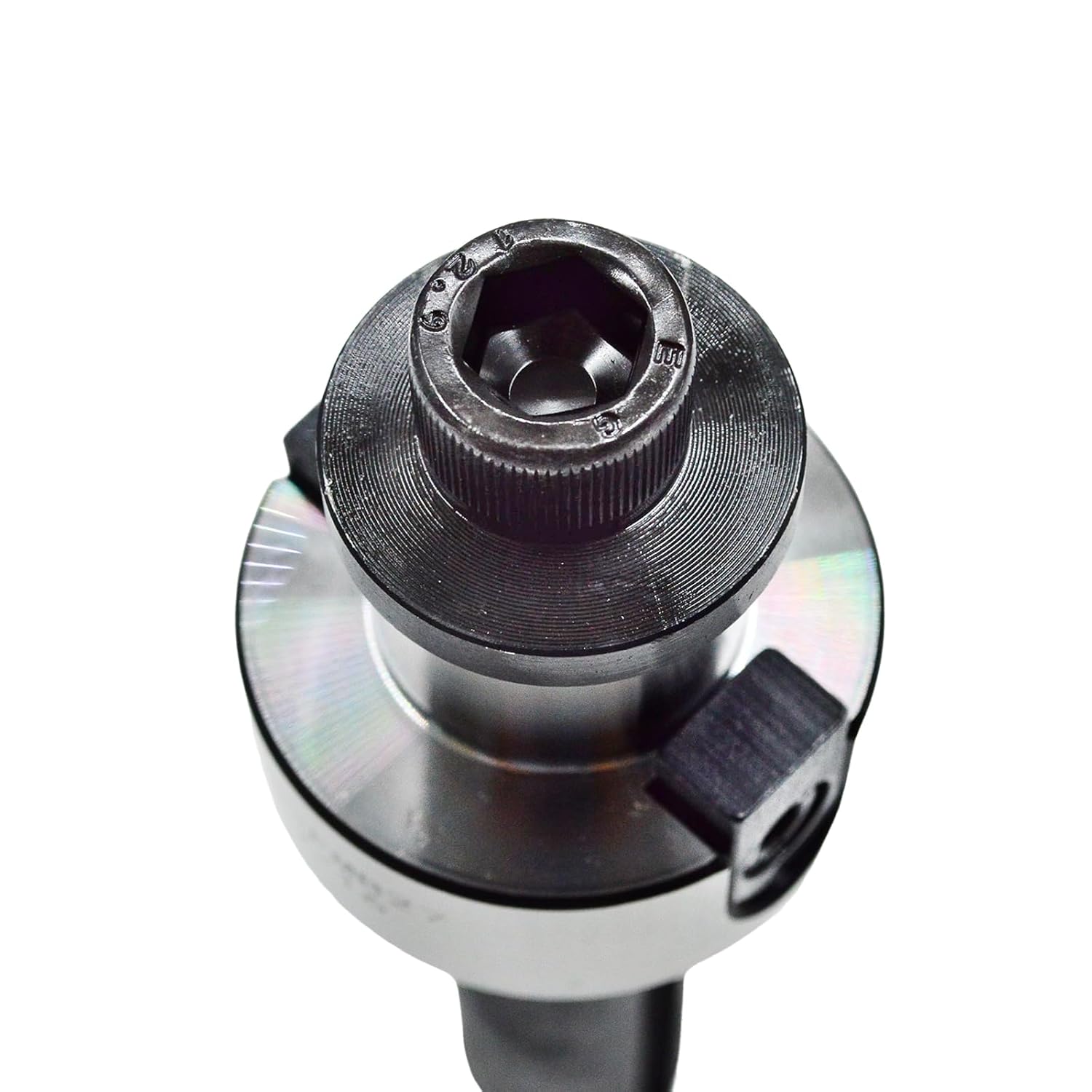

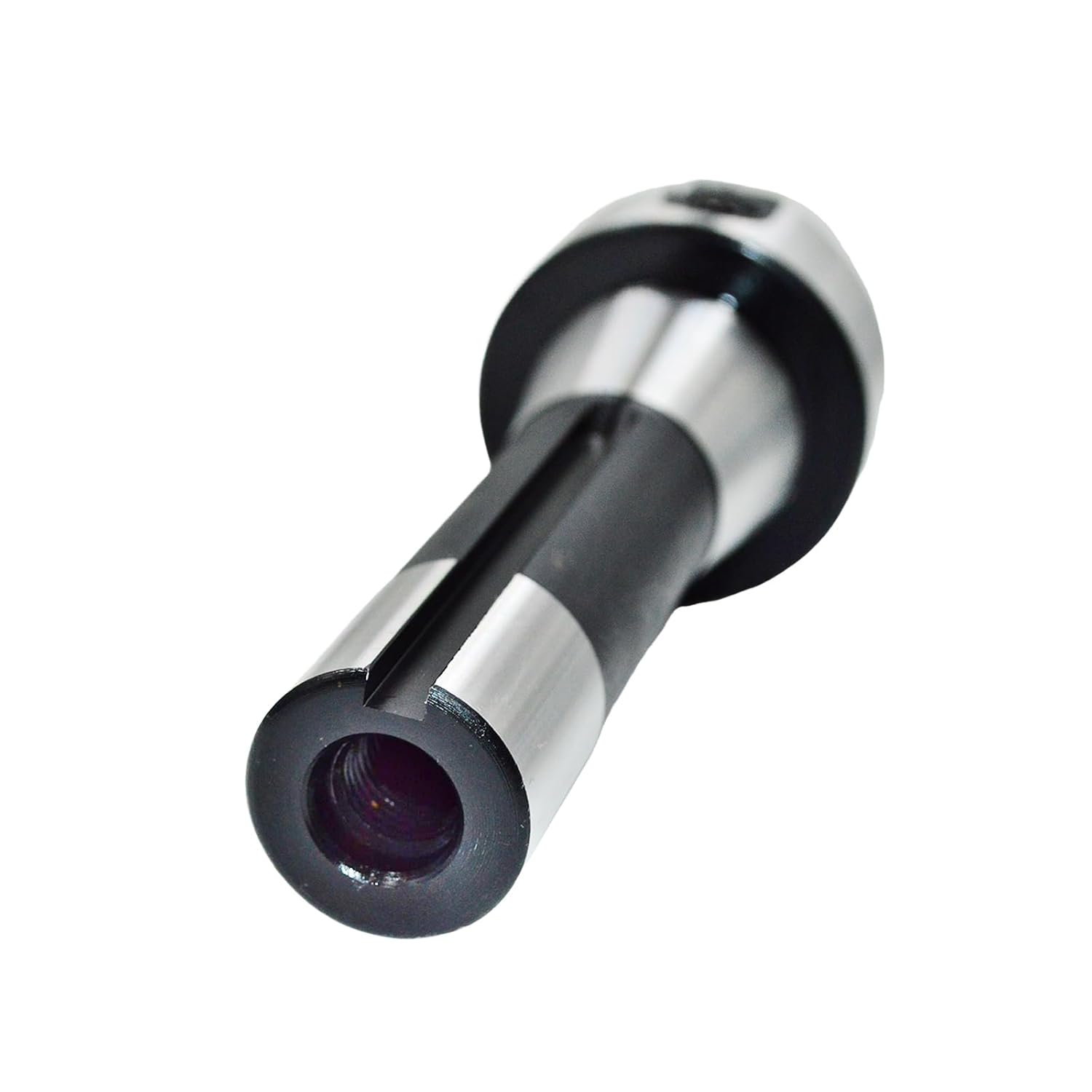

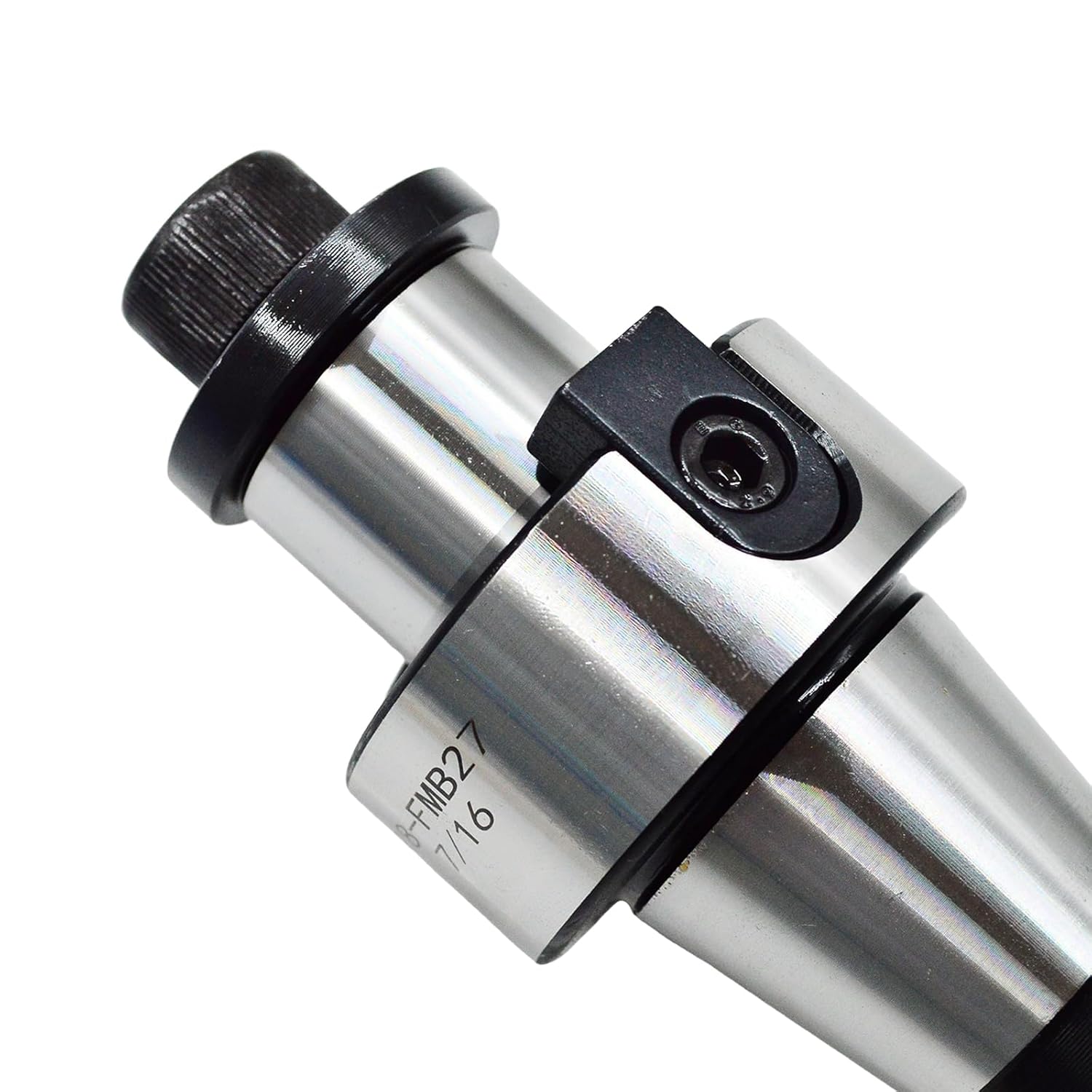

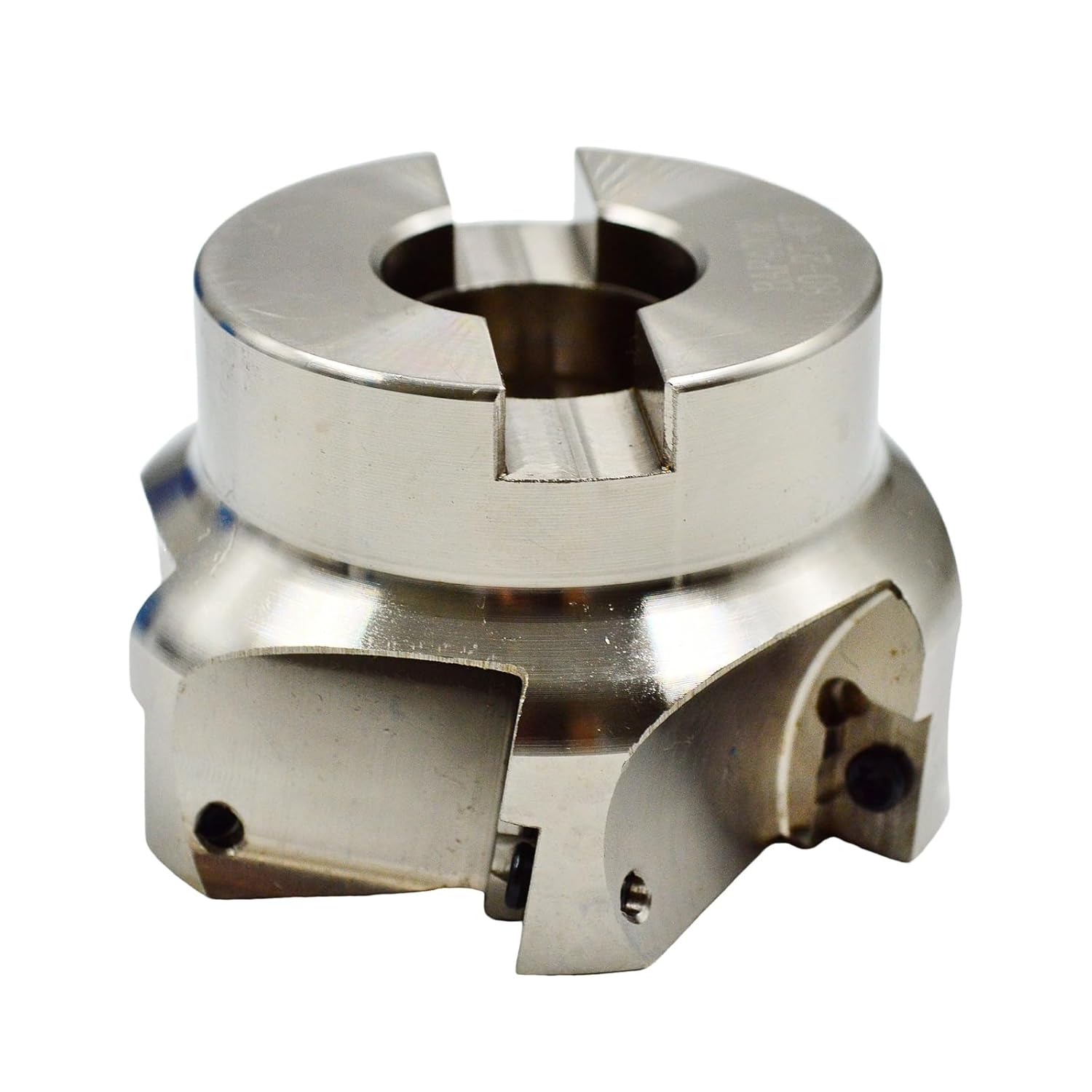

• [R8 FMB27 Arbor]:7/16-20 Draw Bar Threads, 27mm/1.06In Bore Diameter. 400R-80-27-6T Face End Mill Cutter: 80mm/3.15in Cutting Diameter, 6 Flutes, 27mm/1.06In Bore Diameter.
• [APMT1604 Carbide Insert]:85°Nose Angle Parallelogram, 11°Relief Angle.
• [Function]:Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
• [High Quality]:Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
• [Widely Application]:This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.
