Yunseity 3 in 1 Clamp Meter Oscilloscope Multimeter, 1000A 1000V AC DC Voltage Current Tester with NCV Data Logging, for Electrical Testing (UT217B)

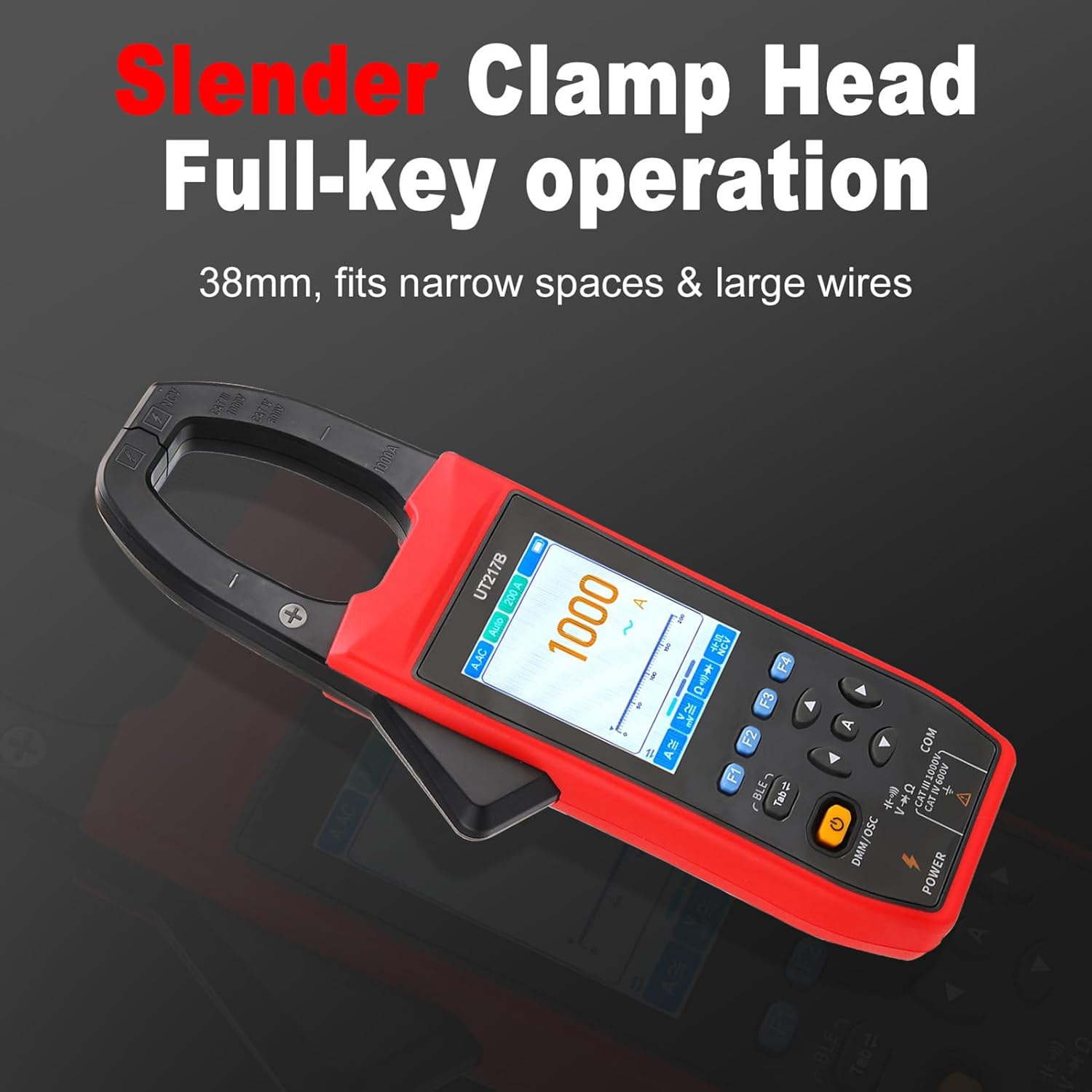

Specification: Item Type: 3-in-1 AC/DC Clamp Meter & Oscilloscope Clamp Size: Approx. 38mm / 1.50in Current: AC/DC: 1000A Inrush Current: 1000A Resistor: 100.00MΩ Capacitor: 20.00nF Frequency: 20.000MHz Duty Cycle: 0.1%-99.9% Diode: 3.0000V Continuity: 0-200.0Ω Analog Bandwidth: Voltage: 1MHz, Current: 1KHz Sampling Method: Real-time Sampling Channels: 1 Input Impedance: ≥10MΩ Battery: 1x2600mAh Rechargeable Battery (Built-in Battery Included) How to Use: Follow the instructions provided in the manual. Package List: 1 x Clamp Meter 2 x Test Leads 1 x USB Cable 1 x Instruction Manual 1 x Storage Bag

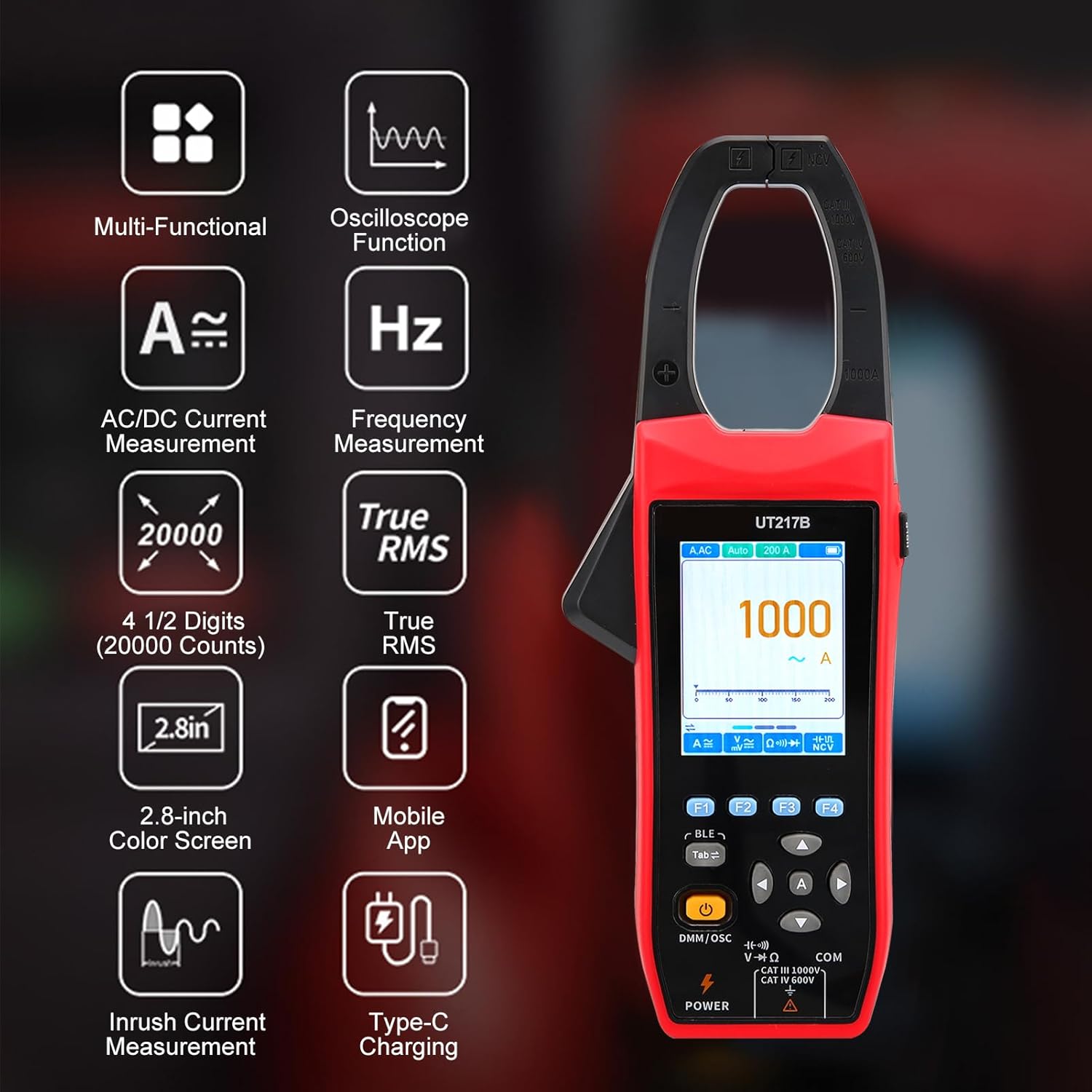

• [Digital multimeter]: Switch seamlessly between clamp meter, multimeter, and oscilloscope modes to measure AC/DC current up to 1000A, voltage up to 1000V, frequency, duty cycle, resistor (200Ω-100MΩ), capacitor (2nF-20mF), diode continuity, and live wire detection.

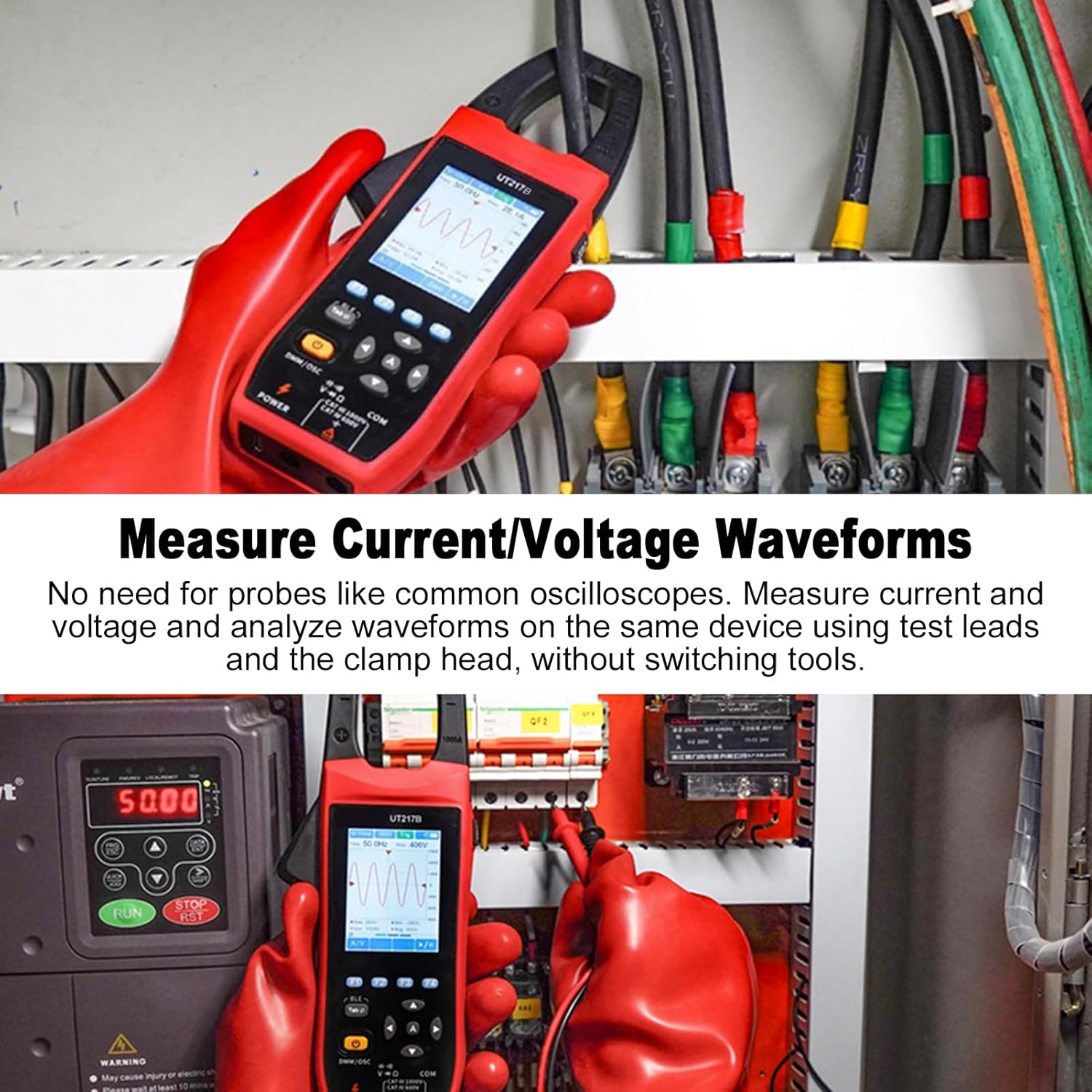

• [Wireless oscilloscope clamp meter]: Features 1MHz analog bandwidth and real-time sampling rate for accurate waveform analysis, capturing transient signals up to 1000V AC/DC voltage and 1000A current with automatic start mode.

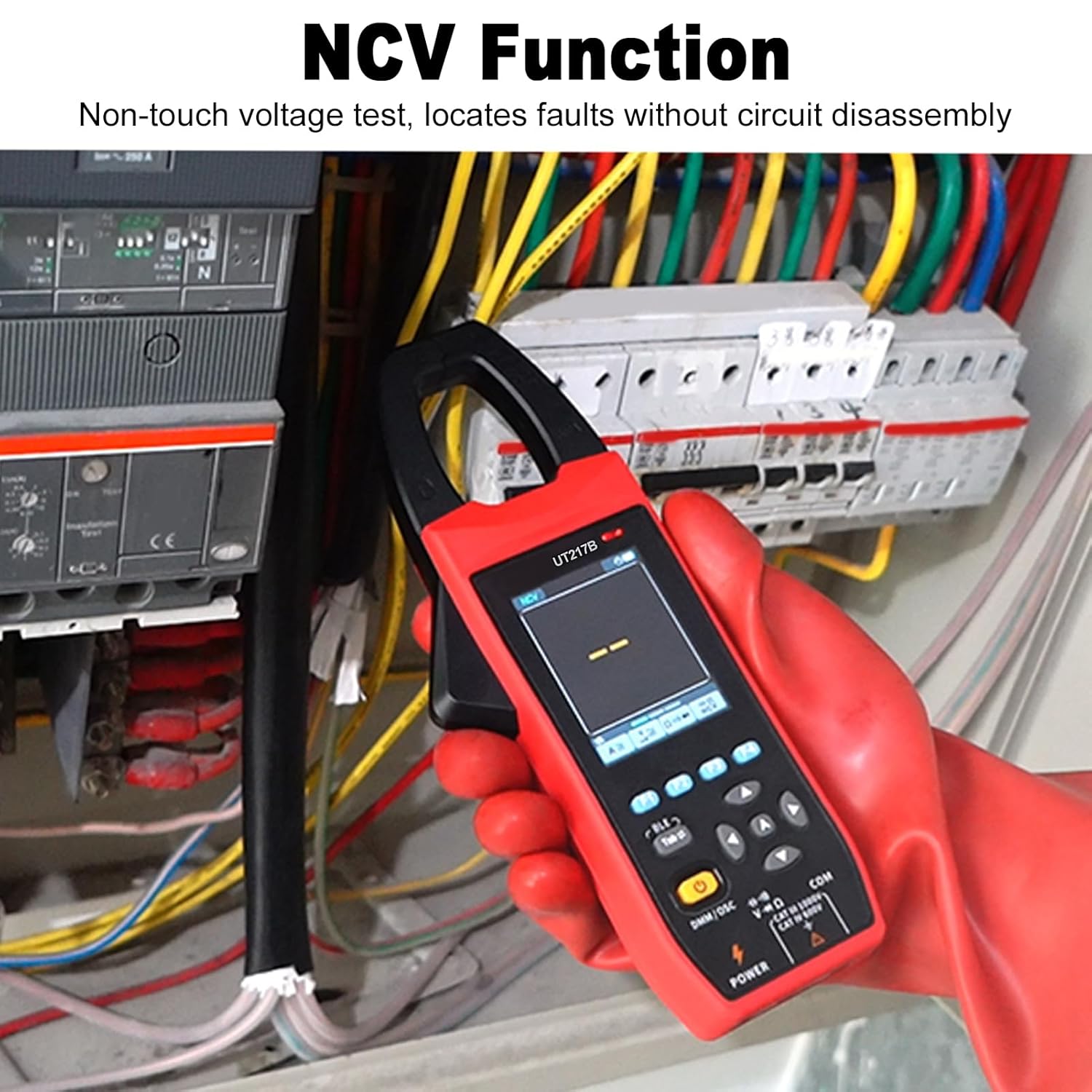

• [BT-enabled clamp tester]: Sync measurement data to smartphones via BLE in CSV format for remote analysis, paired with non-touch voltage detection for quick identification of live wires
• [RMS clamp meter]: Delivers 20,000-count resolution with true RMS technology for precise AC/DC readings, offering both auto and manual ranging to adapt to diverse electrical testing scenarios efficiently.

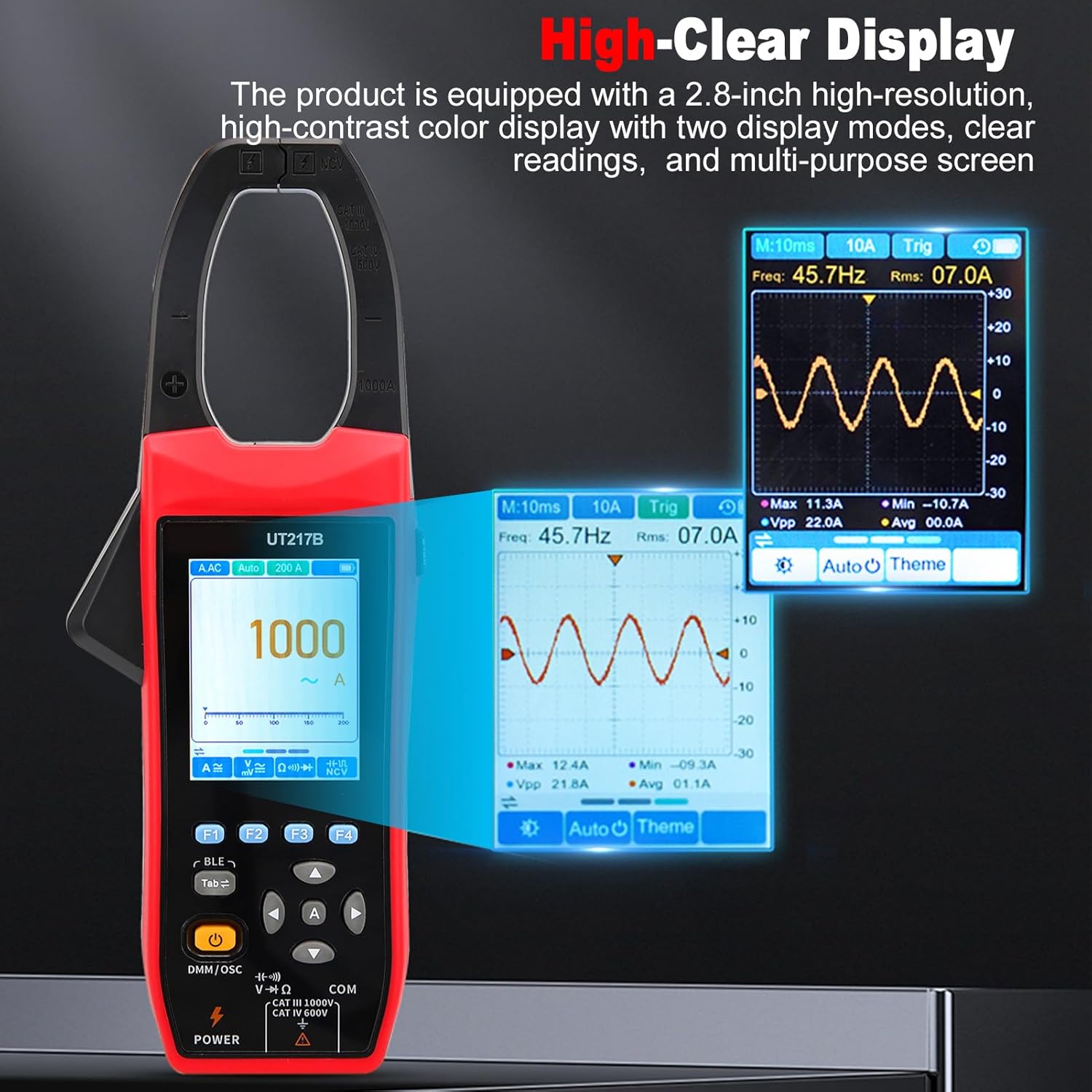

• [Portable oscilloscope multimeter]: Equipped with a 2.8" backlit LCD, ergonomic clamp design, and built-in 2600mAh batteryfor clear visibility and extended use in low-light environments.
